10. Network Configuration

10.1. General Structure
10.1.1. Available Host Options
10.1.2. Interface Parameters
10.2. Advanced Network Configuration
10.2.1. Extra SIP Sockets
10.2.2. Extra SIP and RTP Sockets
10.2.3. Cluster Sets

Starting with version 2.7, the sip:carrier uses a dedicated network.yml file to configure the IP addresses of the system. The reason for this is to be able to access all IPs of all nodes for all services from any particular node in case of a distributed system on one hand, and in order to be able the generate /etc/network/interfaces automatically for all nodes based on this central configuration file.

10.1. General Structure

The basic structure of the file looks like this:

hosts:
  self:
    role:
      - proxy
      - lb
      - mgmt
    interfaces:
      - eth0
      - lo
    eth0:
      ip: 192.168.51.213
      netmask: 255.255.255.0
      type:
        - sip_ext
        - rtp_ext
        - web_ext
        - web_int
    lo:
      ip: 127.0.0.1
      netmask: 255.255.255.0
      type:
        - sip_int
        - ha_int

Some more complete, sample configuration is shown in network.yml Overview Section 3, “network.yml Overview” section of the handbook.

The file contains all configuration parameters under the main key: hosts

In sip:carrier systems all hosts of the system are defined, and the names are the actual host names instead of self, like this:

hosts:

  web01a:
    peer: web01b
    role: ...
    interfaces: ...

  web01b:
    peer: web01a
    role: ...
    interfaces: ...

10.1.1. Available Host Options

There are three different main sections for a host in the config file, which are role, interfaces and the actual interface definitions.

  • role: The role setting is an array defining which logical roles a node will act as. Possible entries for this setting are:

    • mgmt: This entry means the host is acting as management node for the platform. In a sip:carrier system this option must always be set. The management node exposes the admin and CSC panels to the users and the APIs to external applications and is used to export CDRs. Please note: this is only set on the nodes of the management pairs. This node is also the source of the installations of other nodes via iPXE and has the approx service (apt proxy).
    • lb: This entry means the host is acting as SIP load-balancer for the platform. In a sip:carrier system this option must always be set. Please note: this is only set on the nodes of the lb pairs. The SIP load-balancer acts as an ingress and egress point for all SIP traffic to and from the platform.
    • proxy: This entry means the host is acting as SIP proxy for the platform. In a sip:carrier system this option must always be set. Please note: this is only set on the nodes of the proxy pairs. The SIP proxy acts as registrar, proxy and application server and media relay, and is responsible for providing the features for all subscribers provisioned on it.
    • db: This entry means the host is acting as the database node for the platform. In a sip:carrier system this option must always be set. Please note: this is only set on the nodes of the db pairs. The database node exposes the MySQL and Redis databases.
    • rtp: This entry means the host is acting as the RTP relay node for the platform. In a sip:carrier system this option must always be set. Please note: this is only set on the nodes of the RTP relay pairs. The RTP relay node runs the rtpengine NGCP component.
    • li: This entry means the host is acting as the interface towards a lawful interception service provider.
  • interfaces: The interfaces setting is an array defining all interface names in the system. The actual interface details are set in the actual interface settings below. It typically includes lo, eth0, eth1 physical and a number of virtual interfaces, like: bond0, vlanXXX
  • <interface name>: After the interfaces are defined in the interfaces setting, each of those interfaces needs to be specified as a separate set of parameters.

Addtional main parameters of a node:

  • dbnode: the sequence number (unique ID) of the node in the database cluster; the value is used only if main DB is set up as an extended cluster on other than db0x nodes too
  • peer: the hostname of the peer node within the pair of nodes (e.g. "web01b" for web01a host). The purpose of that: each node knows its companion for providing high availability, data replication etc.
  • status: one of online, offline, inactive. inactive means that the node is up but is not ready to work in the cluster (installing process). offline means that the node is not reachable. online is a normal working node.

10.1.2. Interface Parameters

  • hwaddr: MAC address of the interface

    caution

    This must be filled in properly for the interface that is used as type ha_int, because the value of it will be used during the boot process of the installation of nodes via iPXE, if PXE-boot is enabled.

  • ip: IPv4 address of the node
  • v6ip: IPv6 address of the node; optional
  • netmask: IPv4 netmask
  • shared_ip: shared IPv4 address of the pair of nodes; this is a list of addresses
  • shared_v6ip: shared IPv6 address of the pair of nodes; optional; this is a list of addresses
  • advertised_ip: the IP address that is used in SIP messages when the NGCP system is behind NAT/SBC. An example of such a deployment is Amazon AMI, where the server doesn’t have a public IP, so load-balancer component of NGCP needs to know what his public domain is (→ advertised_ip).
  • type: type of services that the node provides; these are usually the VLANs defined for a particular NGCP system.

    info

    You can assign a type only once per node.

    Available types are:

    • api_int: internal, API-based communication interface. It is used for the internal communication of such services as faxserver, fraud detection and others.
    • aux_ext: interface for potentially insecure external components like remote system log collection service.

      info

      For example the CloudPBX module can use it to provide time services and remote logging facilities to end customer devices. The type aux_ext is assigned to lo interface by default. If it is needed to expose this type to the public, it is recommended to assign the type aux_ext to a separate VLAN interface to be able to limit or even block the incoming traffic easily via firewalling in case of emergency, like a (D)DoS attack on external services.

    • mon_ext: remote monitoring interface (e.g. SNMP)
    • rtp_ext: main (external) interface for media traffic
    • sip_ext: main (external) interface for SIP signalling traffic between NGCP and other SIP endpoints
    • sip_ext_incoming: additional, optional interface for incoming SIP signalling traffic
    • sip_int: internal SIP interface used by NGCP components (lb, proxy, etc.)
    • ssh_ext: command line (SSH) remote access interface
    • web_ext: interface for web-based or API-based provisioning and administration
    • web_int: interface for the administrator’s web panel, his API and generic internal API communication
    • li_int: used for LI (Lawful Interception) traffic routing
    • ha_int: main communication interface between the nodes
    • boot_int: the default VLAN used to install nodes via PXE-boot method
    • rtp_int: internal interface for handling RTP traffic among NGCP nodes that may reside in greater distance from each other, like in case of a specialised NGCP configuration with centralized web / DB / proxy nodes and distributed LB nodes (Please refer to Cluster Sets Section 10.2.3, “Cluster Sets” section for further details)
info

Please note that, apart from the standard ones described so far, there might be other types defined for a particular NGCP system.

  • vlan_raw_device: tells which physical interface is used by the particular VLAN
  • post_up: routes can be defined here (interface-based routing)
  • bond_XY: specific to "bond0" interface only; these contain Ethernet bonding properties

10.2. Advanced Network Configuration

You have a typical deployment now and you are good to go, however you may need to do extra configuration depending on the devices you are using and functionality you want to achieve.

10.2.1. Extra SIP Sockets

By default, the load-balancer listens on the UDP and TCP ports 5060 (kamailiolbport) and TLS port 5061 (kamailiolbtlsport). If you need to setup one or more extra SIP listening ports or IP addresses in addition to those standard ports, please edit the kamailiolbextra_sockets option in your /etc/ngcp-config/config.yml file.

The correct format consists of a label and value like this:

    extra_sockets:
      port_5064: udp:10.15.20.108:5064
      test: udp:10.15.20.108:6060

The label is shown in the outbound_socket peer preference (if you want to route calls to the specific peer out via specific socket); the value must contain a transport specification as in example above (udp, tcp or tls). After adding execute ngcpcfg apply:

ngcpcfg apply 'added extra socket' && ngcpcfg push all

The direction of communication through this SIP extra socket is incoming+outgoing. The sip:carrier will answer the incoming client registrations and other methods sent to the extra socket. For such incoming communication no configuration is needed. For the outgoing communication the new socket must be selected in the outbound_socket peer preference. For more details read the next section Section 10.2.2, “Extra SIP and RTP Sockets” that covers peer configuration for SIP and RTP in greater detail.

important

In this section you have just added an extra SIP socket. RTP traffic will still use your rtp_ext IP address.

10.2.2. Extra SIP and RTP Sockets

If you want to use an additional interface (with a different IP address) for SIP signalling and RTP traffic you need to add your new interface in the /etc/network/interfaces file. Also the interface must be declared in /etc/ngcp-config/network.yml.

Suppose we need to add a new SIP socket and a new RTP socket on VLAN 100. You can use the ngcp-network tool for adding interfaces without having to manually edit this file:

ngcp-network --set-interface=eth0.100 --host=slb01a --ip=auto --netmask=auto --hwaddr=auto --type=sip_ext_incoming
ngcp-network --set-interface=eth0.100 --host=slb01b --ip=auto --netmask=auto --hwaddr=auto --type=sip_ext_incoming
ngcp-network --set-interface=eth0.100 --host=prx01a --ip=auto --netmask=auto --hwaddr=auto --type=rtp_int_100
ngcp-network --set-interface=eth0.100 --host=prx01b --ip=auto --netmask=auto --hwaddr=auto --type=rtp_int_100

The generated file should look like the following:

slb01a:
..
..
    eth0.100:
      hwaddr: ff:ff:ff:ff:ff:ff
      ip: 192.168.1.2
      netmask: 255.255.255.0
      shared_ip:
        - 192.168.1.3
      shared_v6ip: ~
      type:
        - sip_ext_incoming
..
..
    interfaces:
      - lo
      - eth0
      - eth0.100
      - eth1
..
..
prx01a:
..
..
    eth0.100:
      hwaddr: ff:ff:ff:ff:ff:ff
      ip: 192.168.1.20
      netmask: 255.255.255.0
      shared_ip:
        - 192.168.1.30
      shared_v6ip: ~
      type:
        - rtp_int_100
..
..
    interfaces:
      - lo
      - eth0
      - eth0.100
      - eth1
..
..
slb01b:
..
..
    eth0.100:
      hwaddr: ff:ff:ff:ff:ff:ff
      ip: 192.168.1.4
      netmask: 255.255.255.0
      shared_ip:
        - 192.168.1.3
      shared_v6ip: ~
      type:
        - sip_ext_incoming
..
..
    interfaces:
      - lo
      - eth0
      - eth0.100
      - eth1
..
..
prx01b:
..
..
    eth0.100:
      hwaddr: ff:ff:ff:ff:ff:ff
      ip: 192.168.1.40
      netmask: 255.255.255.0
      shared_ip:
        - 192.168.1.30
      shared_v6ip: ~
      type:
        - rtp_int_100
..
..
    interfaces:
      - lo
      - eth0
      - eth0.100
      - eth1

As you can see from the above example, extra SIP interfaces must have type sip_ext_incoming. While sip_ext should be listed only once per host, there can be multiple sip_ext_incoming interfaces. The direction of communication through this SIP interface is incoming only. The sip:carrier will answer the incoming client registrations and other methods sent to this address and remember the interfaces used for clients' registrations to be able to send incoming calls to him from the same interface.

In order to use the interface for the outbound SIP communication it is necessary to add it to extra_sockets section in /etc/ngcp-config/config.yml and select in the outbound_socket peer preference. So if using the above example we want to use the vlan100 IP as source interface towards a peer, the corresponding section may look like the following:

    extra_sockets:
      port_5064: udp:10.15.20.108:5064
      test: udp:10.15.20.108:6060
      int_100: udp:192.168.1.3:5060

The changes have to be applied:

ngcpcfg apply 'added extra SIP and RTP socket' && ngcpcfg push all

After applying the changes, a new SIP socket will listen on IP 192.168.1.3 on slb01 node and this socket can now be used as source socket to send SIP messages to your peer for example. In above example we used label int_100. So the new label "int_100" is now shown in the outbound_socket peer preference.

Also, RTP socket is now listening on 192.168.1.30 on prx01 node and you can choose the new RTP socket to use by setting parameter rtp_interface to the Label "int_100" in your Domain/Subscriber/Peer preferences.

10.2.3. Cluster Sets

In a sip:carrier system it is possible to have geographically distributed nodes in the same logical NGCP unit. Such a configuration typcally involves the following elements:

  • centralised management (web), database (db) and proxy (prx) nodes: these provide all higher level functionality, like system administration, subscriber registration, call routing, etc.
  • distributed load balancer (lb) nodes: these serve as SBCs for the the whole NGCP and handle SIP and RTP traffic to / from SIP endpoints (e.g. subscribers); and they also communicate with the central elements of NGCP (e.g. proxy nodes)

In case of such an NGCP node configuration it is possible to define cluster sets which are collections of NGCP nodes providing the load balancer functionality.

Cluster sets can be assigned to subscriber domains or SIP peers and will determine the route of SIP and RTP traffic for those sets of SIP endpoints:

  • For SIP peers the selected nodes will be used to send outbound SIP traffic through
  • For both SIP peers and subscriber domains the selected nodes will provide RTP relay functionality (the rtpengine NGCP component will run on those nodes)
10.2.3.1. Configuration of Nodes of Cluster Sets

There are 2 places in NGCP’s main configuration files where an entry for cluster sets must be inserted:

  1. Declaration of cluster sets

    This happens in /etc/ngcp-config/config.yml file, see an example below:

    cluster_sets:
      default:
        dispatcher_id: 50
      default_set: default
      poland:
        dispatcher_id: 51
      type: distributed

    Configuration entries are:

    • <label>: an arbitrary label of the cluster set; in the above example we have 2 of them: default and poland; the cluster set default is always defined, even if cluster sets are not used
    • <label>.dispatcher_id: a unique, numeric value that identifies a particular cluster set
    • default_set: selects the default cluster set
    • type: the type of cluster set; can be central or distributed
  2. Assignment of cluster sets

    This happens in /etc/ngcp-config/network.yml file, see an example below:

      .
      .
      lb03a:
        .
        .
        vlan792:
          cluster_sets:
            - poland
          hwaddr: 00:00:00:00:00:00
          ip: 172.30.61.37
          netmask: 255.255.255.240
          shared_ip: 172.30.61.36
          type:
            - sip_int
          vlan_raw_device: bond0

    In the network configuration file typically the load balancer (lb) nodes are assigned to cluster sets. More precisely: network interfaces of load balancer nodes that have sip_int type — that are used for SIP signalling and NGCP’s internal rtpengine command protocol — are assigned to cluster sets.

    In order to do such an assignment a cluster set’s label has to be added to the cluster_sets parameter, which is a list.

After modifying network configuration with cluster sets, the new configuration must be applied in the usual way:

> ngcpcfg apply 'Added cluster sets'
> ngcpcfg push all
10.2.3.2. Configuration of Cluster Sets for SIP and RTP Traffic

For both SIP peers and subscriber domains you can select the cluster set labels predefined in config.yml file.

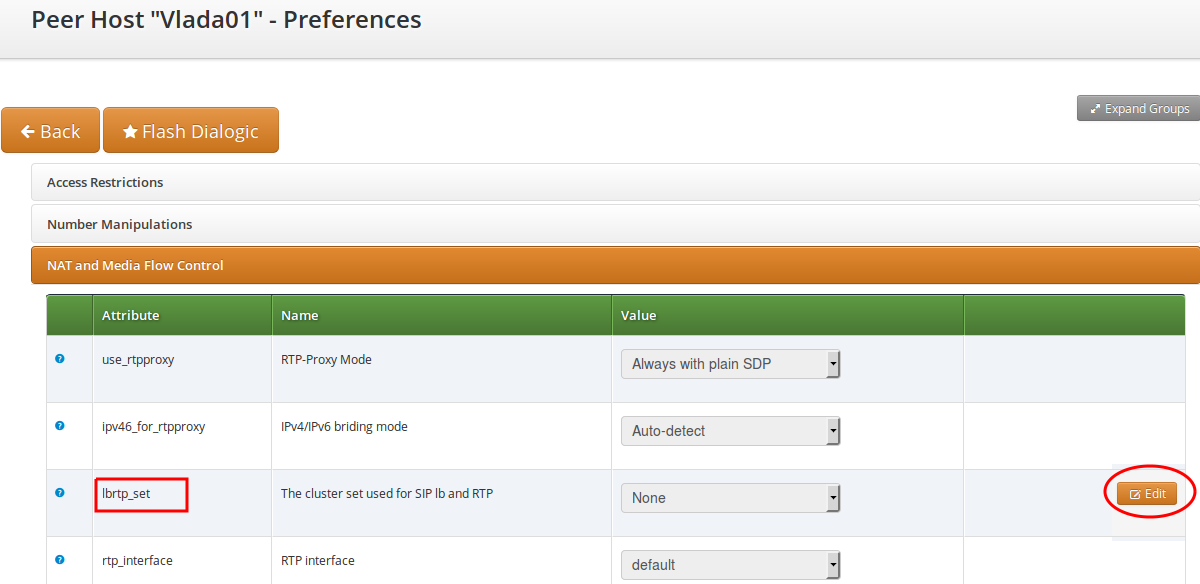

  • SIP peers: In order to select a particular cluster set for a SIP peer you have to navigate to Peerings → select the peering group → select the peering server → Preferences → NAT and Media Flow Control and then Edit lbrtp_set parameter.

    Select Cluster Set for a Peer

    Figure 96. Select Cluster Set for a Peer

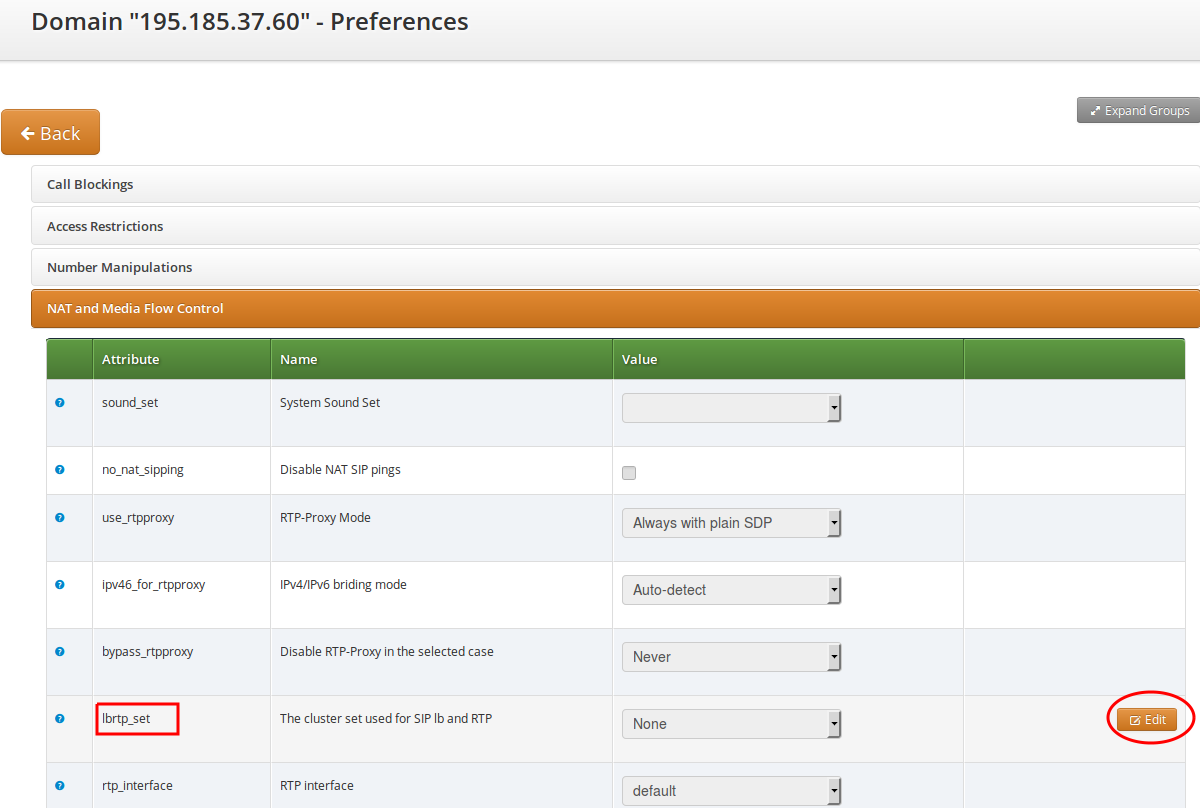

  • Domains: In order to select a particular cluster set for a domain you have to navigate to Domains → select the domain → Preferences → NAT and Media Flow Control and then Edit lbrtp_set parameter.

    Select Cluster Set for a Domain

    Figure 97. Select Cluster Set for a Domain
